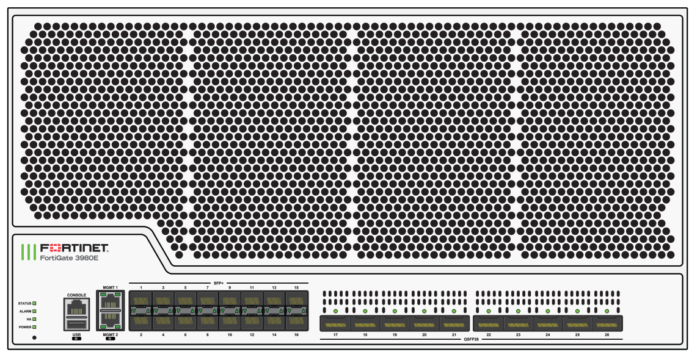

 | FortiGate 3980E/-DC | |
| 40/100 GE QSFP+/QSFP28 Slots | 10 | |
| 1/10 GE SFP/SFP+Slots | 16 | |
| GE RJ45 Management Ports | 2 | |
| Included Transceivers | 2x SFP+ (SR 10 GE) | |
| Onboard Storage | — | |
| USB Ports | 1 | |
| RJ45 Console Port | 1 | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 1.05 Tbps / 1.05 Tbps / 680 Gbps | |
| Firewall Latency (64 byte UDP packets) | 3 μs | |
| Firewall Throughput (Packets Per Second) | 1,020 Mpps | |
| Concurrent Sessions (TCP) | 160 Million | |
| New Sessions/Second (TCP) | 550,000 | |
| Firewall Policies | 200,000 | |
| IPsec VPN Throughput (512 byte) | 400 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 | |
| Client-to-Gateway IPsec VPN Tunnels | 200,000 | |
| SSL-VPN Throughput | 9.5 Gbps | |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30,000 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 26 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 17,000 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 12 Million | |
| Application Control Throughput (HTTP 64K) | 55 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 500 | |
| High Availability Configurations | Active-Active, Active-Passive, Clustering | |
| IPS Throughput | 32 Gbps | |
| NGFW Throughput | 28 Gbps | |
| Threat Protection Throughput | 20 Gbps |
