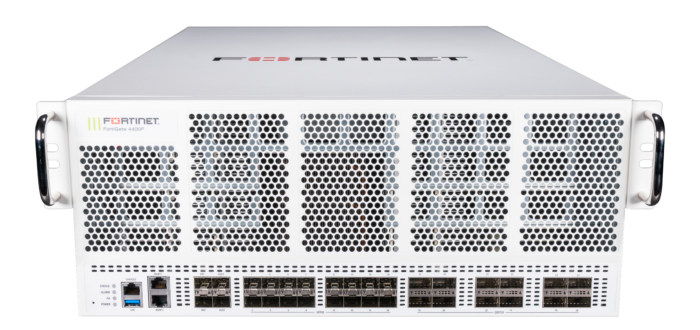

 | FortiGate 4400F | FortiGate 4401F | |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 12 | ||
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 16 | ||
| 25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots | 2 | ||
| 25 GE SFP28 / 10 GE SFP+ / GE SFP AUX Slots | 2 | ||
| GE RJ45 Management Ports | 2 | ||
| Included Transceivers | 2x SFP+ (SR 10GE) | ||
| Onboard Storage | — | 2x 2TB SSD | |
| USB Port | 1 | ||
| RJ45 Console Port | 1 | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 1.15 / 1.14 / 0.50 Tbps | ||
| Firewall Latency (64 byte UDP packets) | 2.98 μs | ||
| Firewall Throughput (Packets Per Second) | 750 Mpps | ||
| Concurrent Sessions (TCP) | 210 Million | ||
| New Sessions/Second (TCP) | 1 Million | ||
| Firewall Policies | 200,000 | ||
| IPsec VPN Throughput (512 byte) | 310 Gbps | ||
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 | ||
| Client-to-Gateway IPsec VPN Tunnels | 200,000 | ||
| SSL-VPN Throughput | 16 Gbps | ||
| Concurrent SSL-VPN Users (Recommended Maximum) | 30,000 | ||
| SSL Inspection Throughput (IPS, avg. HTTPS) | 86 Gbps | ||
| SSL Inspection CPS (IPS, avg. HTTPS) | 70,000 | ||
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 9 Million | ||
| Application Control Throughput (HTTP 64K) | 140 Gbps | ||
| Virtual Domains (Default / Maximum) | 10 / 500 | ||
| High Availability Configurations | Active-Active, Active-Passive, Clustering | ||
| IPS Throughput | 94 Gbps | ||
| NGFW Throughput | 82 Gbps | ||
| Threat Protection Throughput | 75 Gbps | ||
